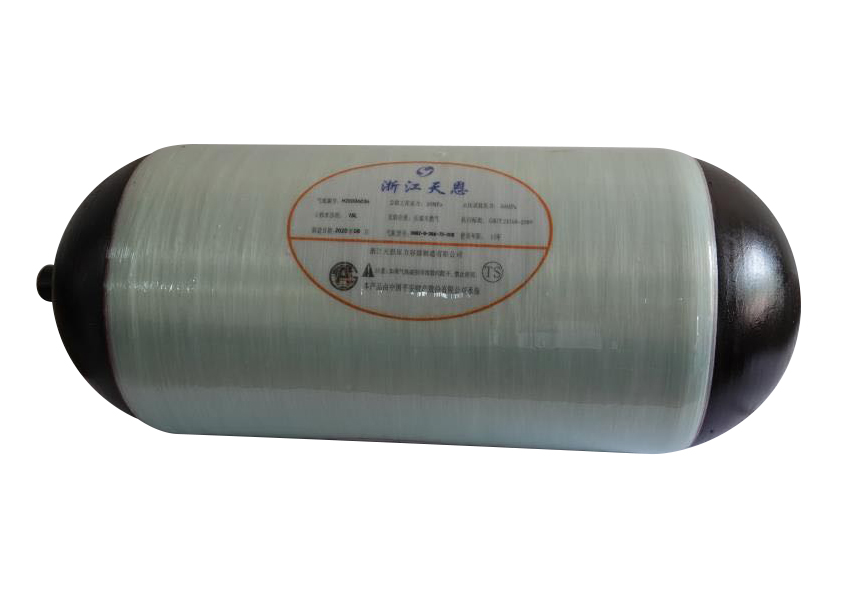

CNG-2Natural gas cylinders for vehicles

Cylinder Type According to standard	Working Pressure	Test Pressure	OD of Liner mm	Wall Thickness	Material	Volume	Nominal Height(mm)	Nominal Weight(kg)
CNG2-G-325-V-20B	20	30	325	5.0	30CrMo	50	780	42.0
						55	845	45.0
						60	910	47.5
						65	980	50.0
						70	1040	52.5
						75	1110	56.0
						80	1160	58.0
						90	1280	63.5
						95	1360	66.0
						100	1420	69.0
CNG2-G-356-V-20B	20	30	356	5.3	30CrMo	50	690	42.0
						60	790	49.0
						65	845	53.0
						70	900	57.0
						75	955	61.0
						80	1010	66.0
						85	1065	69.5
						90	1115	73.5
						100	1215	79.0
						110	1315	84.5
						120	1420	91.0
						130	1520	96.0
						140	1625	102.0
						145	1680	105.5
						150	1730	108.0
CNG2-G-406-V-20B	20	30	406	6.2	30CrMo	80	840	67.0
						85	880	70.0
						87	895	71.5
						90	920	73.0
						95	965	76.0
						100	1000	79.0
						110	1085	85.0
						120	1165	91.0
						130	1245	97.0
						140	1325	103.0
						150	1410	109.0
						160	1490	115.0
						170	1570	121.0
						180	1650	127.0
						190	1730	133.0
						200	1810	139.0
